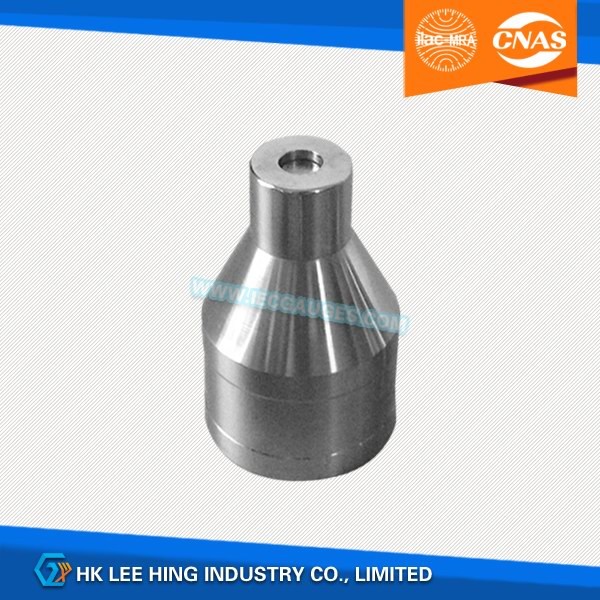

E27 Gauge for Caps on Finished Lamps 7006-51-2

Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-51-2
Made in China

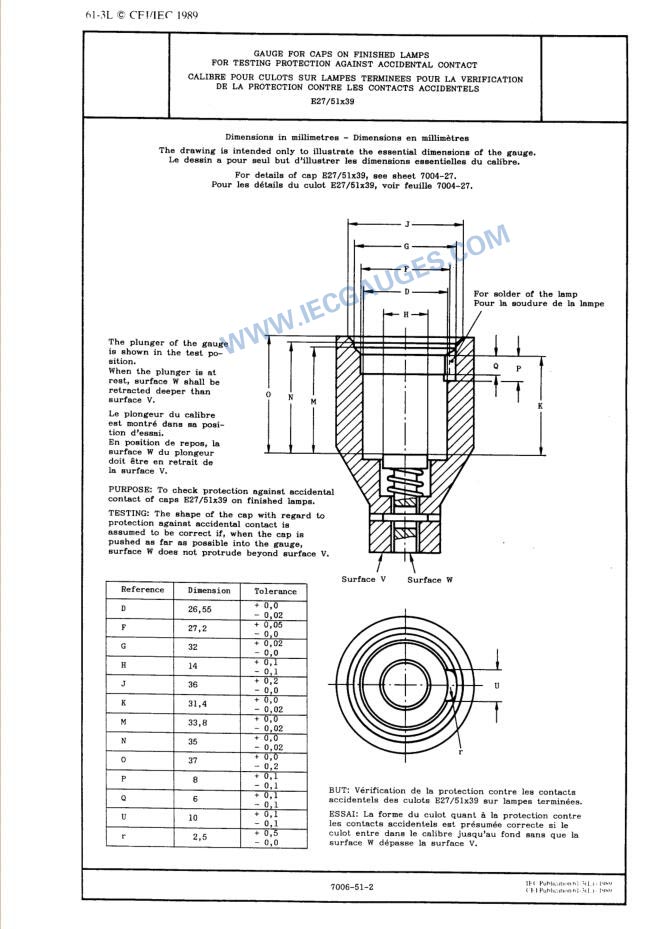

Product description: IEC60061-3: 7006-51-2 Gauge for Caps on Finished Lamps for Testing Protect Against Accidental Contact E27/51*39. According to standard IEC 60061-3.

IEC60061-3: 7006-51-2 Gauge for Caps on Finished Lamps for Testing Protect Against Accidental Contact E27/51*39.


Gauge for E27/51x39 caps on finished lamps for testing protect against accidental contact, code 7006-51-2;


Purpose:

To check protection against accidental contact of caps E27/51x39 on finished lamps.


Testing:

The shape of the lamp with regard to protection against accidental contact is assumed to be correct, if the lamp can be pushed as far as possible into the gauge, surface W does not protrude beyond surface V.
